Ceramic Seal Grinding Machine

73220 NC Horizontal Axis Round Table Surface Grinding Machin
Editor:xghlDate：2019-01-10 13:44 click：

产品详情
产品参数

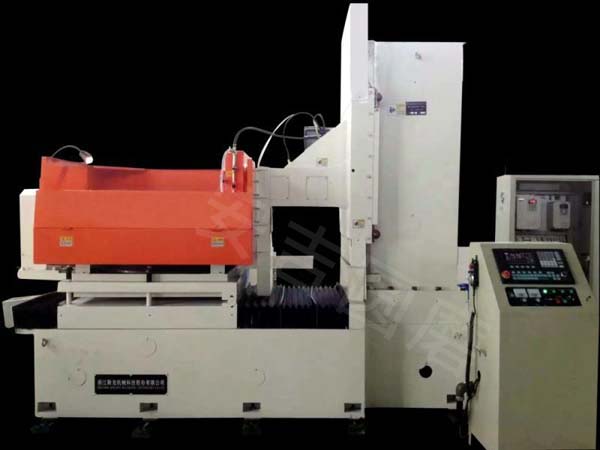

CNC horizontal shaft rotary surface grinder 73220

CNC horizontal shaft rotary surface grinder SSKMG73220

The principle and structure of equipment:

The SSKMG73220 head on the carriage reciprocates the carriage for vertical movement in the form of column guide rail. Electrical equipment imported by rail, Rexroth, new design by working platform, improve equipment stability and accuracy. The bed, the column used in all casting two tempering stress relieving material, high strength, to ensure the stability of the equipment.

Advantage:

Independent research and development of CNC grinding machine control system, parameter setting simple. Set the size, automatic detection, automatic identification, automatic knife grinding, automatic compensation, automatic grinding quantity. Equipped with automatic demagnetizing device with adjustable magnetic field loss protection function, etc.. The casting speed, high rigidity, high precision, convenient operation,

Use:

Suitable for rotary surface grinding, the grinding machine main diameter in the range of 2200 round face, flat pieces. (according to the need can be customized)

Applicable industry:

Saw blade factory, auto parts factory, bearing factory, engine factory, tool factory, friction plate factory, factory, ceramic piston seal factory and general machinery factory products workshop and workshop tools, grinding precision parts machining;

Characteristic：

1, product processing adaptability; 2, the processing precision is high, the thickness of the workpiece gap within 0.003mm after processing, the surface roughness can reach Ra 0.4 M. 3, product deformation, uniform size and good; 4, the labor intensity is low, a control machine, reduce labor costs; 5, high production efficiency, good economic benefits; 6, machine maintenance and simple and convenient modern production management; 7.

主要技术规格	高速静压 sskm73220
Main TechnicaL Specifications
工作台直径（mm）	Φ2250
Diameter Of Work Table（mm）
磨削工件最大尺寸	Φ2250*100
Maximum Size Of Grinding Workpiece（mm）
工作台转速（rpm）	0～110
Revoving Speed Of Work Table （rpm）
工作台最大承重（kg）	800
Maximum Load-bearing Of Work Table（kg）
托板往复速度X轴(m/s)	0～3
Reciprocating Speed Of The Dragging Plate X Axis (m/s)
托板往复行程（mm）	1200
Reciprocating Speed Of Dragging Plate （mm）
砂轮主轴转速(rpm)	2850
Speed Of Main Spindle Of Grinding Wheel (rpm)
主轴定心锥面跳动（mm）	0.003
Runout Of Centering Conical Surface Of Main spindle（mm）
砂轮尺寸（mm）	Φ400x50xΦ203
Dimensions Of Grinding Wheel（mm）
垂直快速升降(mm/min)	200
Vertical Rapid Going Up And Down(mm/min)
垂直进给最小进给量（mm）	0.002
Minimum Amount OF Feed Of Vertical Feed （mm）
加工平面度（mm）	0.0015/1000
Processing Planeness（mm）
工作台端面跳动（mm）	0.023
End Face Runout Of Work Table （mm）
工作台电机功率(kw)	15
Motor Power Of Work Table (kw)
砂轮主轴电机功率(kw)	15
Motor Power Of Main Spindle Of Grinding Wheel (kw)
垂直升降伺服电机(n.m)	15
Servo Motor For Verticai Going Up And Down(n.m)
工作台往复伺服电机(n.m)	15
Servo Motor For Fen Reciprocation Of Work Table(n.m)
水泵电机功率	250
Motor Power Of Water Pump(w)
机床净重(kg)	1800
Net Weight(kg)
